Compact low consumption High Pressure Centrifugal Pump Long life span

FOB Reference Price:Get Latest Price
$15.00 - $37.50 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ZKSJ
Model Number:
ZKSJ-DC50K
Structure:
Single-stage Pump
Usage:
Water
Application:
Submersible
Power:
Electric
Fuel:
Electric
Pressure:
High Pressure
Product Name:
High Pressure Centrifugal Pump
Dimensions:
100.5x95.5x69.6 mm
Weight:
about 600g
Max Flow:
1380L/H
Max Head:
16 meters
Inlet:
14 mm
Outlet:
14 mm
Material:
PA66+30%GF
Max Working Temp:
100°C
Standard or Nonstandard:
Standard
Theory:
Centrifugal Pump
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Common Box
Port
Shenzhen
Lead Time :
3~20 working days

Compact low consumption High Pressure Centrifugal Pump Long life span

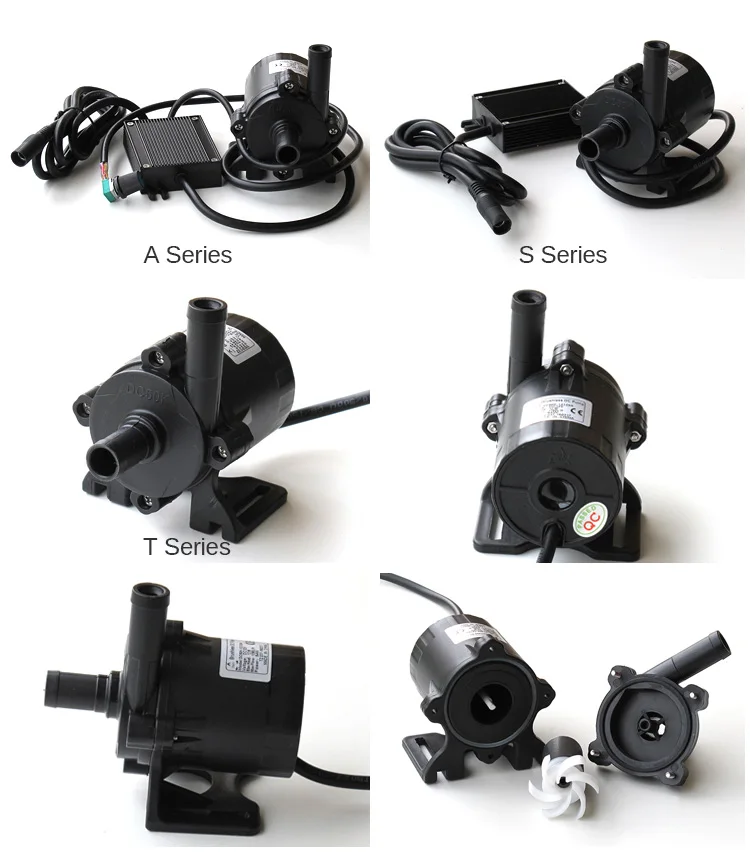

Pump Photos

Pump Main Features

  • 1. Brushless DC motor, also known as EC motor; Magnetic Driven;
  • 2. Small size but strong; Low consumption & High Efficiency;
  • 3. Long time continuous working, lifespan about 30000 hours;
  • 4. Safety - no spark, Explosion - Proof; Low noise about 40dB;
  • 5. Submersible, 100% waterproof;
  • 6. Wide range of working voltage; Maintenance - free;
  • 7. Can be used to pump water, oil, acid and alkali solution;
  • 8. Variety Power: DC electric source, Battery or Solar Panel;
  • 9. Soft Start with Low in-rush current, great for the Solar System.

Pump Model List

ModelRated Voltage(V)Current(A)Max Flow(L/H)Max Head(M)
DC50K-1260T122.09006
DC50K-1260S
DC50K-1260A
DC50K-12120S124.5126012
DC50K-12120A
DC50K-2490T242.010809
DC50K-2490S
DC50K-2490A
DC50K-24160S243.6138016
DC50K-24160A
Tips: We offer customized service according to your specific needs at a reasonable price.

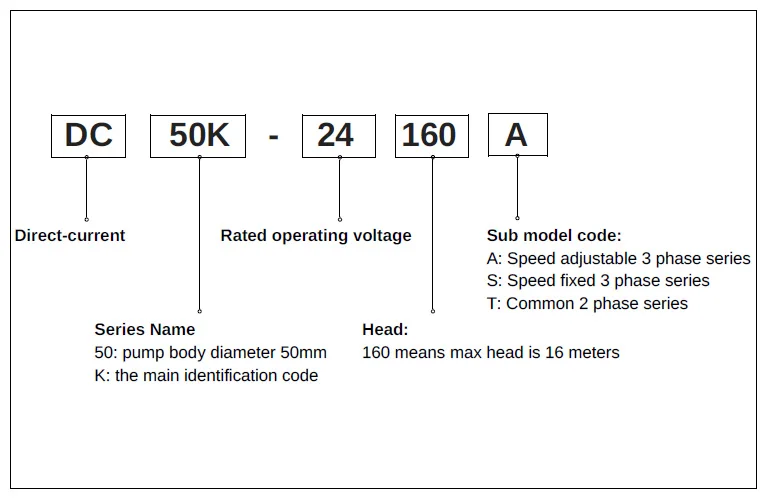

Pump Model Code

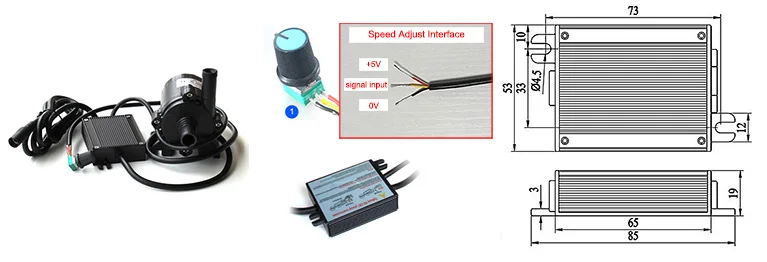

Speed adjust & Control Box

Speed adjust way (only A series):
  • 1. default: by potentiometer or 0-5V analog signal;
  • 2. by PWM (50-800 HZ Amplitude 5V)
Connection: connect the black wire to ground lead and yellow wire to the signal of your system. Hang the red wire in the air.
Three-phase DC pump controller (only S & A series): All electronic components are put inside of the control box, and separated from pump body, so pump body can bear higher hot water (100℃ max)

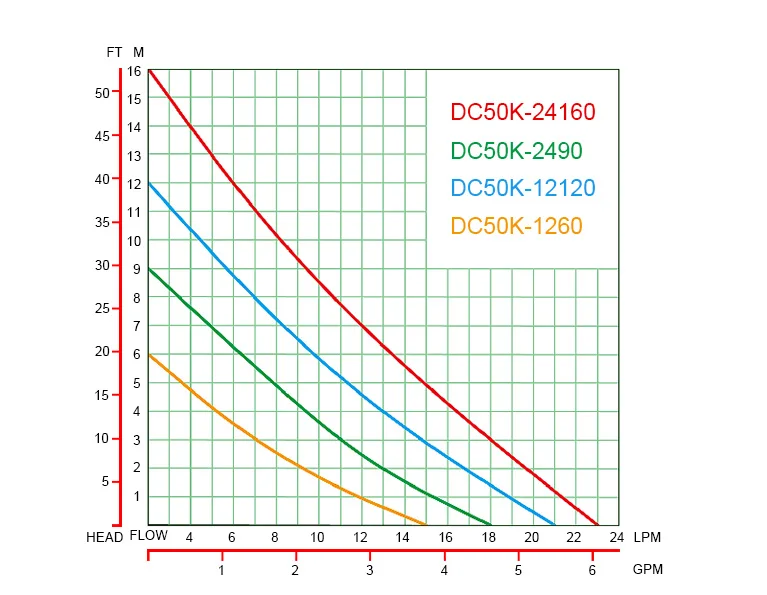

Pump Performance Curve

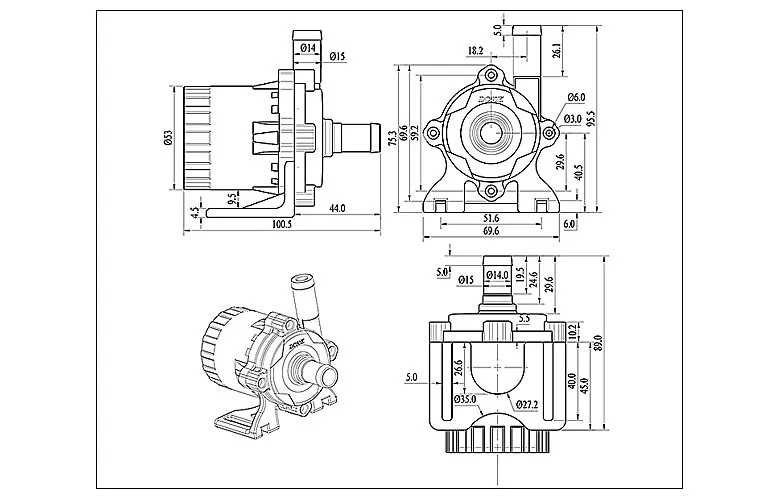

Pump Dimensions

About BLDC PUMP Technology Company Limited

As one of the leading small DC water pump companies in China, we produce brushless DC pump from 2009. We ship our special purpose circulation pumps to manufacturers, retailer, and companies worldwide. We are based in the technological heaven of Shenzhen, China. We make sure that our products provide best quality and standard to its customers, OEM/ODM service is available. Looking forward to establishing a healthy business relationship with you!
Customized Service Content:
  • 1. The label on the surface of the Water Pump.
  • 2. Box of the Pump.
  • 3. Power Cable Length.
  • 4. Type of Connector Plug.
  • 5. Waterproof Power Supply.
  • 6. Water Shortage Protection.
  • 7. Others, please communicate with us.
Customized Quantity Requirements: 100 pcs
Additional Cost:
We will not charge any additional fees except the cost of raw materials. Usually, the unit price will be only a little higher than the normal standard model pump.
