Compact low Consumption Small Electric Water Pump with Years of Experience

FOB Reference Price:Get Latest Price
US $9-15 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ZKSJ
Model Number:
ZKSJ-DC40F-1240
Structure:
Single-stage Pump
Usage:
Water
Application:
Submersible
Power:
Electric
Fuel:
Electric
Pressure:
Low Pressure
Product Name:
12v Water Transfer Pump
Dimensions:
85.5x64.8x43.8 mm
Weight:
about 230g
Max Flow:
780L/H
Max Head:
4 meters
Inlet:
1/2 inch thread (20mm)
Outlet:
1/2 inch thread (20mm)
Material:
PA66+30%GF
Max Working Temp:
60°C
Standard or Nonstandard:
Nonstandard
Theory:
Centrifugal Pump
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Common Box
Port
Shenzhen
Lead Time :
3~20 working days
Video Description

Compact low Consumption Small Electric Water Pump with Years of Experience

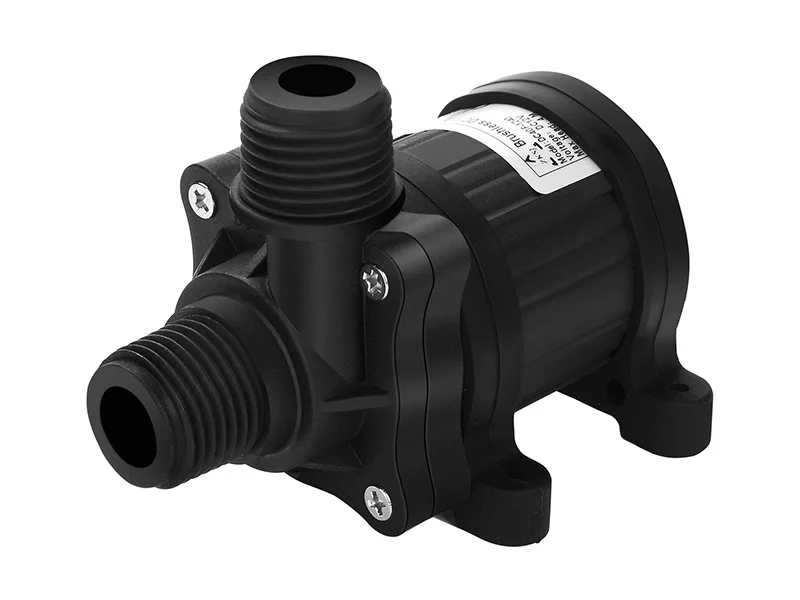

Pump Photos

Pump Main Features

  • 1. High efficiency ECM brushless DC motor with a long lifespan.
  • 2. Circuit potted with epoxy, waterproof performance is 100% reliable.
  • 3. Heavy duty works for 24 hours continuous running.
  • 4. Wide voltage range suitable for various power supply.
  • 5. Small size but strong, low consumption & high efficiency.
  • 6. Safety - no spark, Explosion - Proof; Low noise about 40dB.
  • 7. Durable permanent magnetic rotor and high-density ceramic shaft.
  • 8. IP 68 Submersible, 100% waterproof, maintenance - free.
  • 9. Water shortage protection (dry running protection).
  • 10. 0-5v analogue speed control function could be added.

Parameters

Model: DC40F-1240
Size: 85.5x64.8x43.8 mmWeight: 230g
Inlet: 1/2 inch thread (20mm)Outlet: 1/2 inch thread (20mm)
Material: Engineering PlasticsHeat Resistance: 0~60°C
Rated Voltage: DC 12VRated Current: 1.2A
Static Head: 4 metersFlow Rate: 780L/H
Life Span: 30000 hrsWorking: Continuous
Plug: 5.5×2.1mm DC PlugCable Length: 1 meters
Water Proof: 100%Submersible: Yes
Driven: Brushless MagneticNoise: less than 40dB
Self-priming: NoSpeed Adjustable: No

Other Sub-series Models List

ModelRated Voltage(V)Current(A)Max Flow(L/H)Max Head(M)
DC40F-1230120.906603.0
DC40F-1240121.207804.0
DC40F-1850181.208405.0
DC40F-2450240.908405.0
DC40F-2460241.209606.0

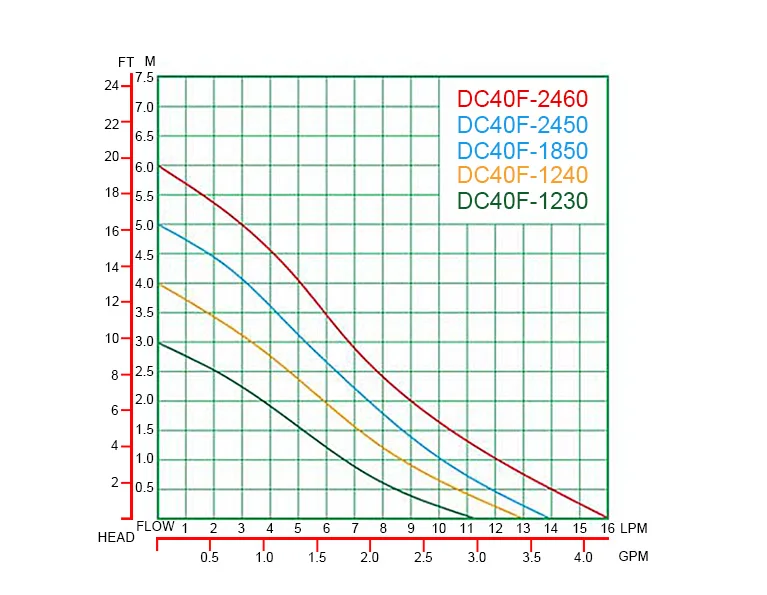

Pump Performance Curve

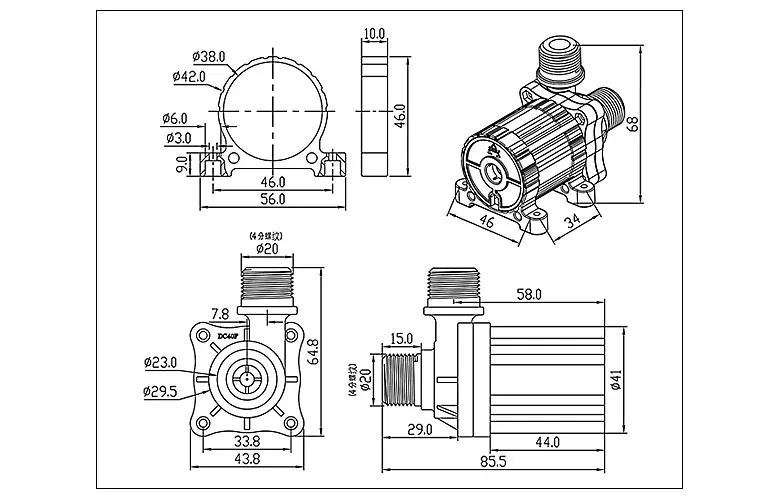

Pump Dimensions

About BLDC PUMP Technology Company Limited

As one of the leading small DC water pump companies in China, we produce brushless DC pump from 2009. We ship our special purpose circulation pumps to manufacturers, retailer, and companies worldwide. We are based in the technological heaven of Shenzhen, China. We make sure that our products provide best quality and standard to its customers, OEM/ODM service is available. Looking forward to establishing a healthy business relationship with you!
Customized Service Content:
  • 1. The label on the surface of the Water Pump.
  • 2. Box of the Pump.
  • 3. Power Cable Length.
  • 4. Type of Connector Plug.
  • 5. Waterproof Power Supply.
  • 6. Water Shortage Protection.
  • 7. Others, please communicate with us.
Customized Quantity Requirements: 100 pcs
Additional Cost:
We will not charge any additional fees except the cost of raw materials. Usually, the unit price will be only a little higher than the normal standard model pump.

Applications

Brushless DC pumps are widely used in various fields such as Automotive & Mobile, Home Appliances, Laboratory & Testing, Commercial And Industrial, Printing & Packaging, Environmental & Water Treatment, Food & Beverage, and etc.

FAQs

Q1: Are you trading company or manufacturer ?
A: We are manufacturer, over 8 years experience in small DC water pumps, OEM/ODM service is available.
Q2: How long is your delivery time?
A: 3-20 working days, depends on the quantity.
Q3. What is the products guarantee?
A: One Year Warranty, and we can supply 1% spare parts for after service.
Q4. How can I choose the most suitable pump?
A: Tell us your requirements of flow rate, head, operation voltage, applications and etc. If you are not sure, please consult us now, we will give useful suggestion within 24 hours!
