Portable Stable Performance Solar Pumps for agriculture at EXW Price

FOB Reference Price:Get Latest Price
$15.00 - $37.50 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ZKSJ
Model Number:
ZKSJ-DC50B
Structure:
Single-stage Pump
Usage:
Water
Application:
Submersible
Power:
Electric
Fuel:
Electric
Pressure:
Low Pressure
Product Name:
Solar Pumps for Agriculture
Dimensions:
100.5x95.5x69.6mm
Weight:
about 600g
Max Flow:
1800L/H
Max Head:
13 meters
Inlet:
20 mm
Outlet:
20 mm
Material:
PA66+30%GF
Max Working Temp:
100°C
Standard or Nonstandard:
Standard
Theory:
Centrifugal Pump
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Common Box
Port
Shenzhen
Lead Time :
3~20 working days

Portable Stable Performance Solar Pumps for agriculture at EXW Price

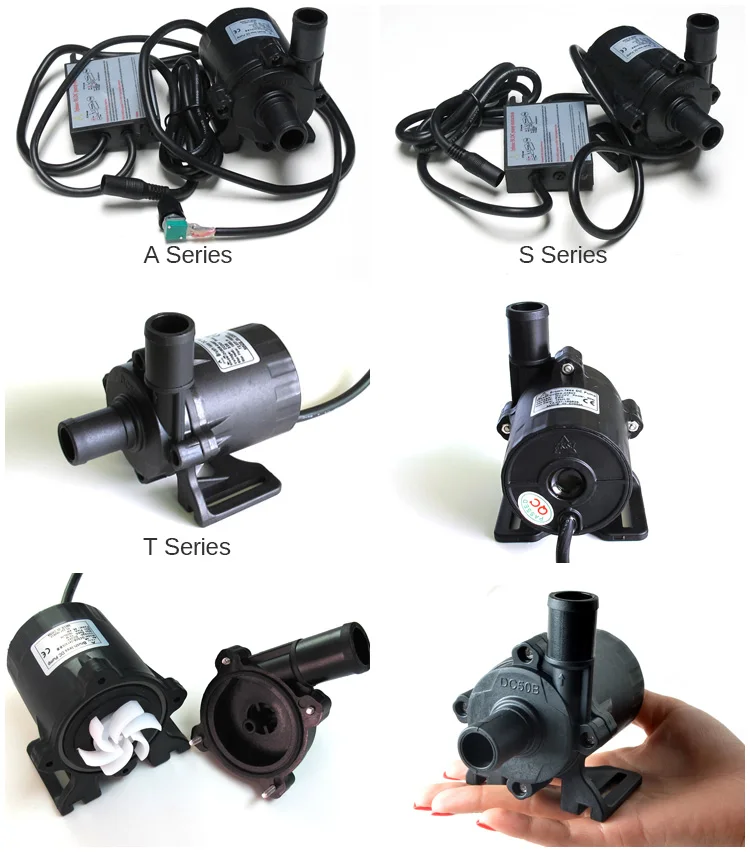

Pump Photos

Pump Main Features

  • 1. Brushless DC motor, also known as EC motor; Magnetic Driven;
  • 2. Small size but strong; Low consumption & High Efficiency;
  • 3. Long time continuous working, lifespan about 30000 hours;
  • 4. Safety - no spark, Explosion - Proof; Low noise about 40dB;
  • 5. Submersible, 100% waterproof;
  • 6. Wide range of working voltage; Maintenance - free;
  • 7. Can be used to pump water, oil, acid and alkali solution;
  • 8. Variety Power: DC electric source, Battery or Solar Panel;
  • 9. Soft Start with Low in-rush current, great for the Solar System.

Pump Model List

ModelRated Voltage(V)Current(A)Max Flow(L/H)Max Head(M)
DC50B-1250T122.011405
DC50B-1250S
DC50B-1250A
DC50B-12100S124.5156010
DC50B-12100A
DC50B-2480T242.013808
DC50B-2480S
DC50B-2480A
DC50B-24130S243.6180013
DC50B-24130A
Tips: We offer customized service according to your specific needs at a reasonable price.

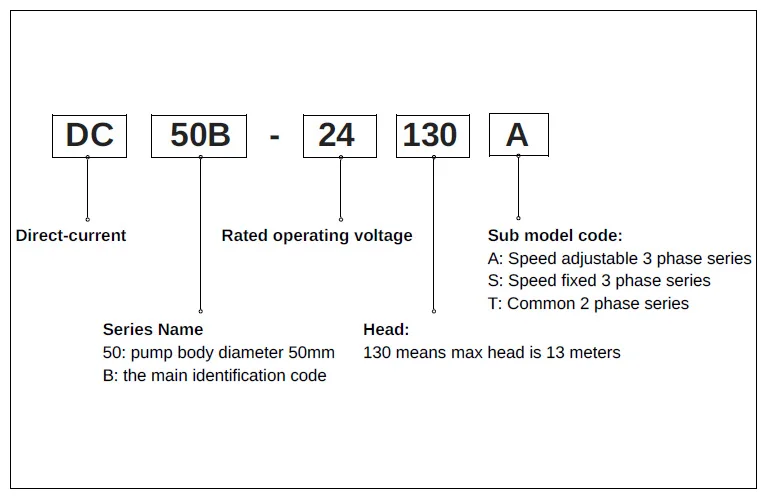

Pump Model Code

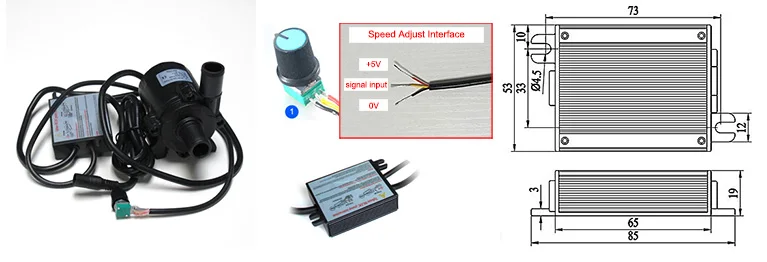

Speed adjust & Control Box

Speed adjust way (only A series):
  • 1. default: by potentiometer or 0-5V analog signal;
  • 2. by PWM (50-800 HZ Amplitude 5V)
Connection: connect the black wire to ground lead and yellow wire to the signal of your system. Hang the red wire in the air.
Three-phase DC pump controller (only S & A series): All electronic components are put inside of the control box, and separated from pump body, so pump body can bear higher hot water (100℃ max)

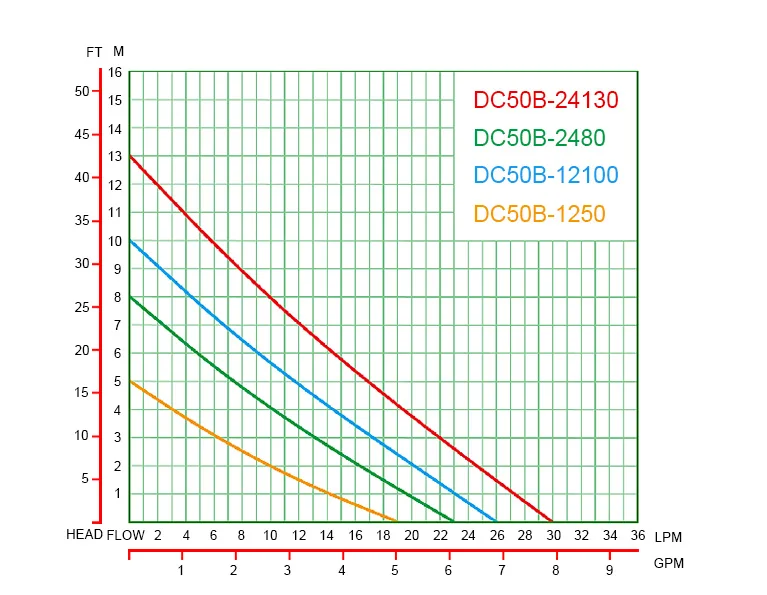

Pump Performance Curve

Pump Dimensions

About BLDC PUMP Technology Company Limited

As one of the leading small DC water pump companies in China, we produce brushless DC pump from 2009. We ship our special purpose circulation pumps to manufacturers, retailer, and companies worldwide. We are based in the technological heaven of Shenzhen, China. We make sure that our products provide best quality and standard to its customers, OEM/ODM service is available. Looking forward to establishing a healthy business relationship with you!
Customized Service Content:
  • 1. The label on the surface of the Water Pump.
  • 2. Box of the Pump.
  • 3. Power Cable Length.
  • 4. Type of Connector Plug.
  • 5. Waterproof Power Supply.
  • 6. Water Shortage Protection.
  • 7. Others, please communicate with us.
Customized Quantity Requirements: 100 pcs
Additional Cost:
We will not charge any additional fees except the cost of raw materials. Usually, the unit price will be only a little higher than the normal standard model pump.

FAQs

Q1: Are you trading company or manufacturer ?
A: We are manufacturer, over 8 years experience in small DC water pumps, OEM/ODM service is available.
Q2: How long is your delivery time?
A: 3-20 working days, depends on the quantity.
Q3. What is the products guarantee?
A: One Year Warranty, and we can supply 1% spare parts for after service.
Q4. How can I choose the most suitable pump?
A: Tell us your requirements of flow rate, head, operation voltage, applications and etc. If you are not sure, please consult us now, we will give useful suggestion within 24 hours!
